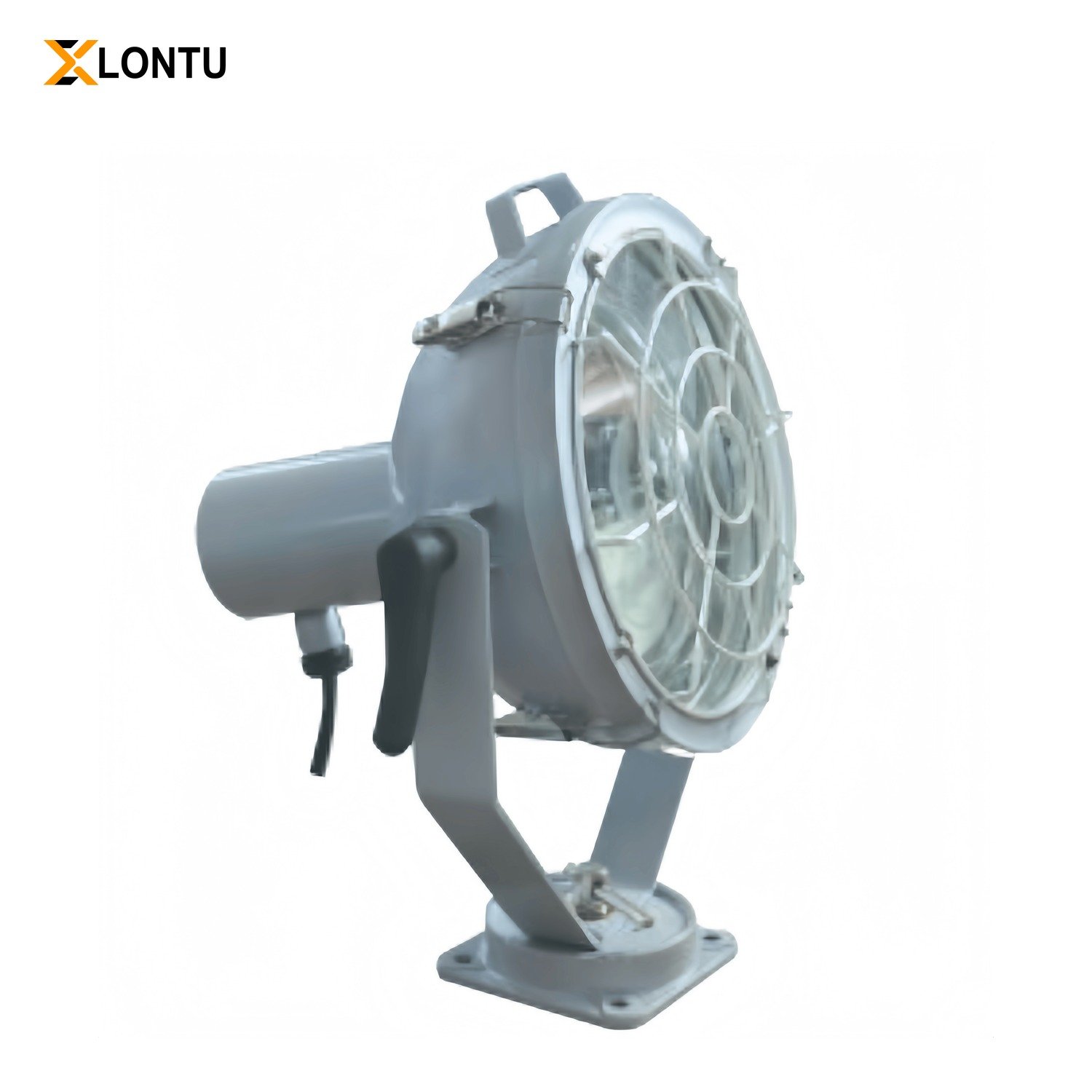

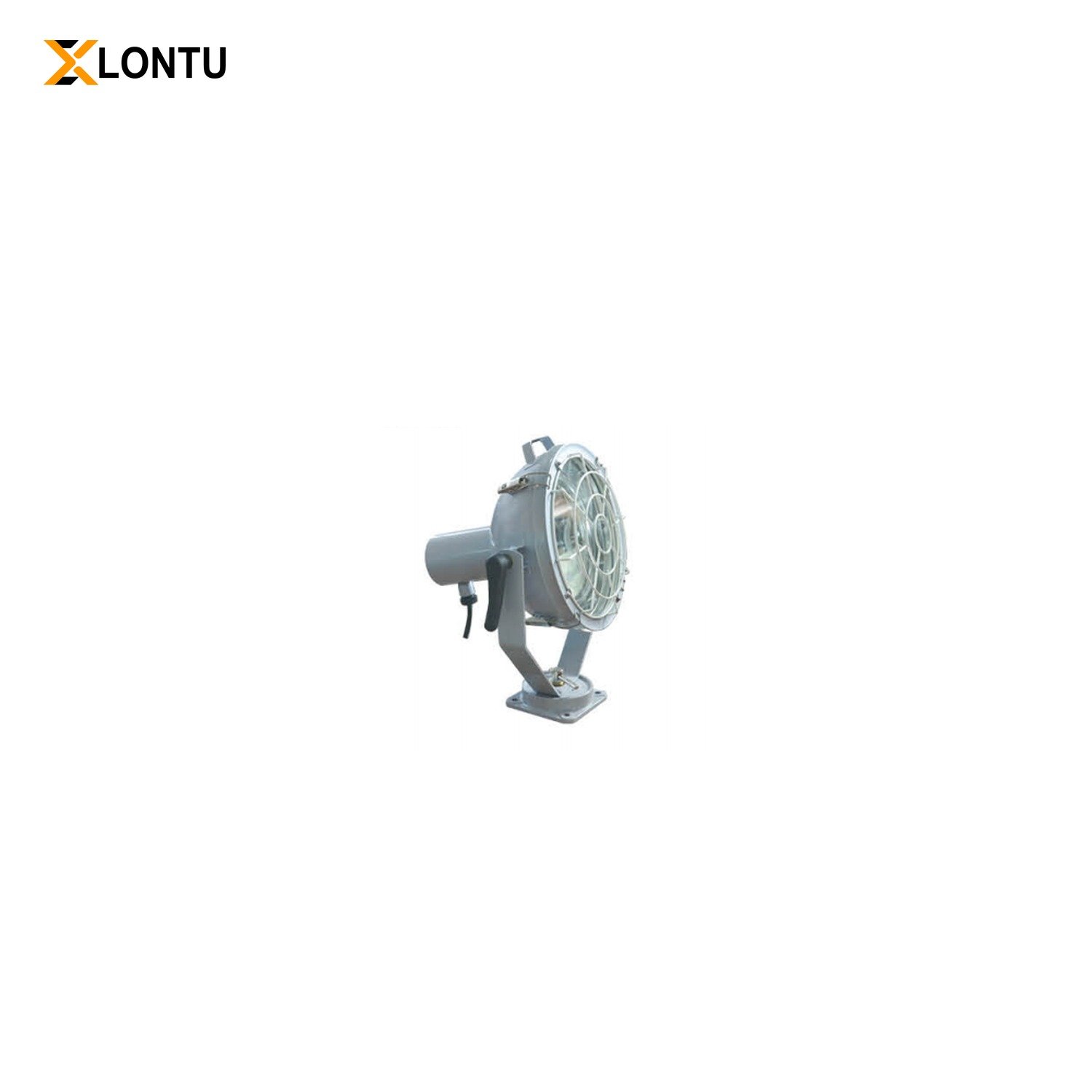

TG1-B / TG2-B Marine Searchlight

描述

Adjustable steel marine searchlight for deck, vessel and offshore area illumination.

Technical Specifications

• Voltage: DC 110V or AC 220V
• Power: TG1-B 300W / TG2-B 500W
• Lamp holder: E40
• Light source: Incandescent lamp, lamp not included
• Luminous flux: 4610 lm / 8300 lm
• Material: Steel
• Protection: IP55
• Cable diameter: Φ10-Φ12
• Weight: 8.97 kg / 10.96 kg with guard

Key Features

• Adjustable aiming bracket
• Protective front guard
• Heavy-duty marine steel housing

Contact Longtu for detailed drawings, certificates, lamp-source options and project quotations.

TG1-B / TG2-B Marine Searchlight for Industrial Projects

The TG1-B / TG2-B Marine Searchlight is a LONTU solution developed for vessels, offshore facilities, engine rooms, decks and marine maintenance areas. It supports stable illumination, practical installation and dependable operation in demanding marine environments. Buyers can use this product page to compare the model with project conditions, installation requirements and the required technical documentation.

Key Project Benefits

• Industrial design suited to demanding operating environments.
• Clear product selection support for contractors, distributors and engineering teams.
• Factory-direct technical communication for specifications, drawings and project matching.
• Quality-controlled production with support from the LONTU engineering team.

Selection and Certification Support

Before ordering, confirm the installation area, ambient conditions, mounting method, input voltage and required protection or certification scope. Certification options and final technical parameters should be matched to the selected model and destination market. LONTU can provide the available datasheet, drawing and compliance documents for project review.

Request a Technical Quote

Send your quantity, application, installation conditions and document requirements to LONTU. Our team will recommend the appropriate configuration and provide a project quotation. Explore more explosion-proof and industrial products or contact our technical sales team.
